ELIAS 18 – Installation and Initial Configuration

Overview

ELIAS 18 is the web-based image management component of UniconOS Management (Scout).

This guide covers preparing for, installing, and performing the initial configuration of ELIAS 18 on Windows. It is based on Citrix’s documentation at Installing ELIAS 18 / Windows.

New Install Preparation

System Requirements

Confirm the target server meets the following minimums before installing.

Firewall Ports

Open the following ports for ELIAS 18 before installing.

Note: When IIS redirection is used, port 22130 does not need to be opened externally; clients reach ELIAS on 80/443 through the IIS sub-directory. Without IIS, ELIAS listens directly on port 80 (or the port you specify).

Download the Installer and Software Packages

• Download the current ELIAS 18 installer, EliasInstaller.exe, and the most recent UniconOS software packages (containers/packages) from https://www.citrix.com/downloads/Elux-Download-Pages/.
• Copy the installer and package files to the server that will host ELIAS.

ELIAS 18 New Install

Perform these steps on the server that will host ELIAS 18. This guide assumes ELIAS is installed on the same server as UniconOS Management and published through IIS.

Pre-requisites

• IIS default install with the WebSocket Protocol feature enabled (already completed if you followed the UniconOS Management install guide on this server).
• Web server certificate (internal Microsoft CA) bound to the IIS Default Web Site on port 443.
• Log on with the Unicon service account (local administrator) created for UniconOS Management.

1. Right-click EliasInstaller.exe and select Run as administrator.

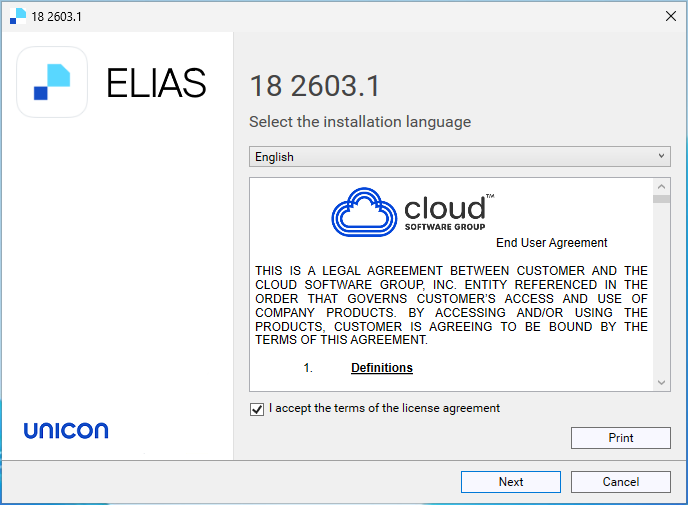

2. On the first page, select the installation language, read the End User Agreement, check I accept the terms of the license agreement, and click Next.

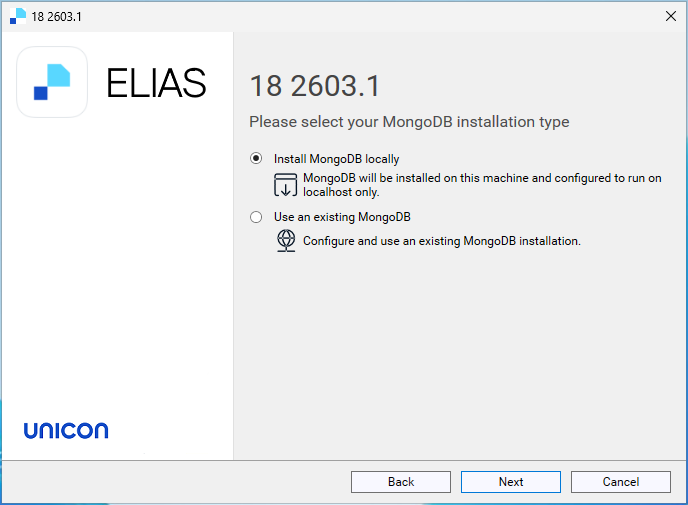

3. On the MongoDB installation type page, choose one of the following and click Next:

a. Install MongoDB locally – MongoDB is installed on this server and configured to run on localhost only (recommended for a single-server deployment).

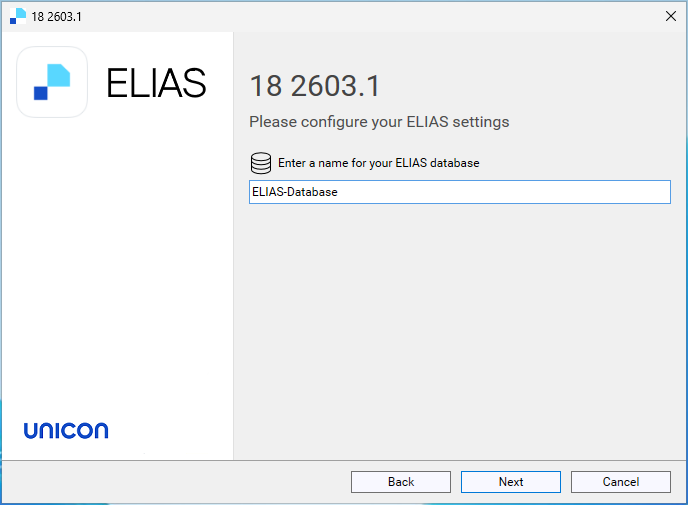

4. On the Configure your ELIAS settings page, enter a name for the ELIAS database and click Next.

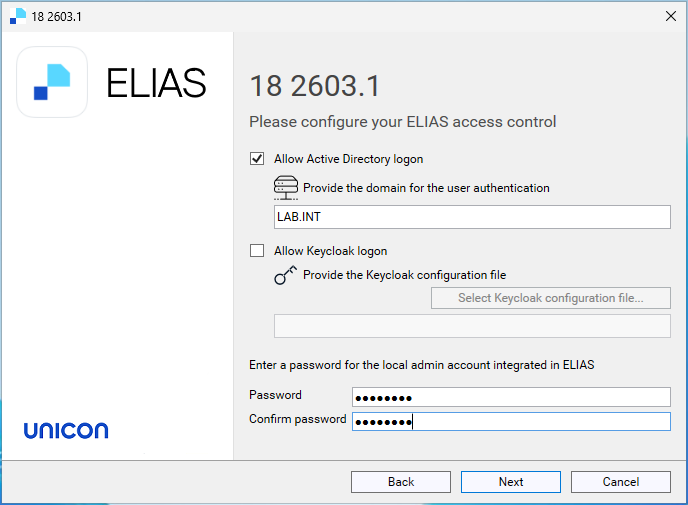

5. On the Configure your ELIAS access control page:

a. Check Allow Active Directory logon and enter the AD domain used for user authentication

b. Enter and confirm a password for the local admin account built into ELIAS. Limit the length to 12 characters or less and avoid special characters ” and \

c. Click Next.

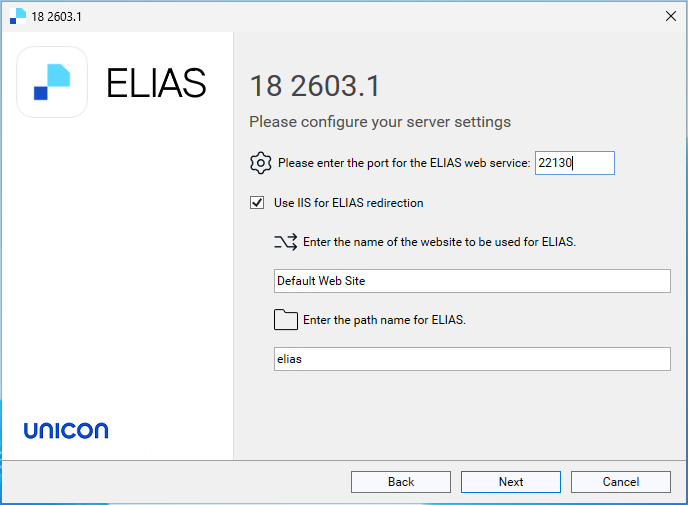

6. On the Configure your server settings page:

a. Leave the ELIAS web service port at 22130.

b. Check Use IIS for ELIAS redirection

c. Enter the website name to be used for ELIAS: Default Web Site.

d. Enter the path name for ELIAS: elias.

e. Click Next.

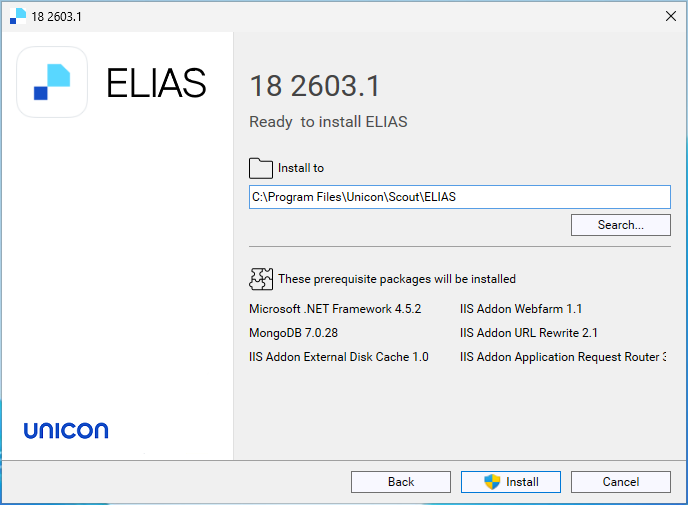

7. On the Ready to install ELIAS page, confirm the installation path (default C:\Program Files\Unicon\Scout\ELIAS)

8. Click Install and accept the UAC prompt. Wait for the prerequisites and ELIAS to finish installing.

9. When the installer finishes, an ELIAS desktop shortcut is created containing the URL of the ELIAS 18 installation.

Post-Installation Verification and Initial Configuration

1. Double-click the ELIAS desktop shortcut, or browse to https://<server FQDN>/elias in a supported browser. Select LOCAL LOGON, sign in as admin with the password set during installation, and click LOG ON.

2. (If required) Allow access from other networks. By default only the installation server’s FQDN is permitted for cross-origin requests. Edit config.json.migrated in c:\Program Files\Unicon\Scout\ELIAS (make a copy first) and add the required FQDNs, optionally with a port, comma-separated, to “allowedOrigins”. Avoid the wildcard [“*”] for security reasons.

3. Grant AD administrators access. Click the Access rights icon in the top toolbar.

4. In the New access right dialog, select the group icon, enter the AD group and AD domain, enable Global admin (or assign a more restrictive role), and click SAVE.
